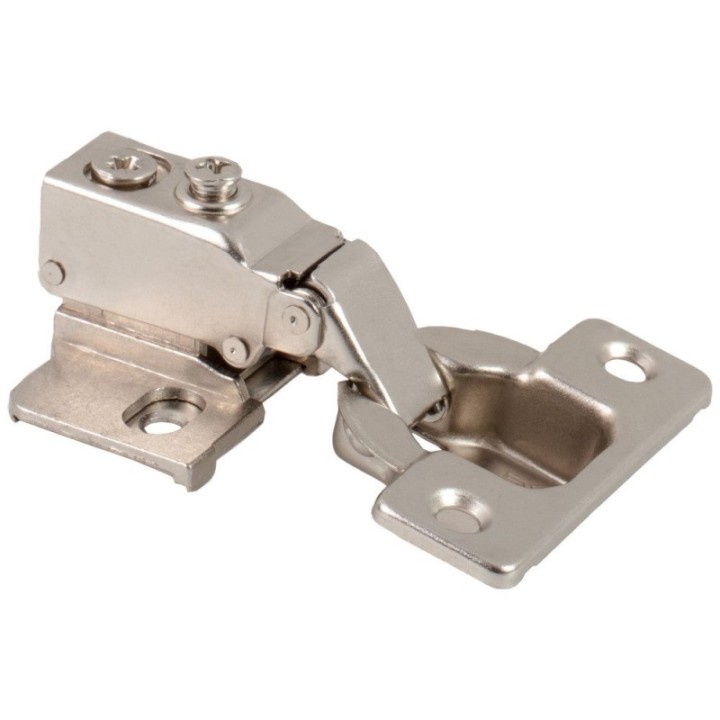

HR MAX™ 105° 1/2" Overlay Cam Adjustable Soft-close Face Frame Hinge without Dowels
HR MAX™ 105° 1/2" Overlay Cam Adjustable Soft-close Face Frame Hinge without Dowels

HR MAX™ 105° 1/2" Overlay Cam Adjustable Soft-close Face Frame Hinge without Dowels

HR Max
$4.00
HR Max = Quality backed by Lifetime warranty Robust die cast face frame plate securely grasps the frame and provides two attachment points Concealed soft-close damper One piece 6-way adjustable compact assembly with vertical, horizontal, and depth cam adjustment dual pivot point
Out-of-Stock
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

HR Max = Quality backed by Lifetime warranty Robust die cast face frame plate securely grasps the frame and provides two attachment pointsConcealed soft-close damperOne piece 6-way adjustable compact assembly with vertical, horizontal, and depth cam adjustment dual pivot point
  • Dual Pivot Point brings the door closer to the cabinet reducing door gap.
  • Cold rolled steel with nickel plating
  • 45 mm boring pattern

  • Brand
    HR Max
  • Reference
    22855-10SFT
  • UPC
    840002532037

  • ADA Friendly
    No
  • Packaging Type
    Small Package
  • Brand
    HR Max
  • Finish
    Zinc
  • Certification
    ANSI/BHMA A156.9-2015 ANSI/KCMA A161.1-2012
  • Installation
    Screw
  • Sold By
    Each
  • Material
    Steel
  • Warranty Period
    Limited Lifetime
  • Mount Type
    Screw
  • Patent
    7594300
  • Closing
    Soft-close
  • Cabinet Type
    Faceframe
  • Recommended Screws
    #6 x 5/8" pan washer head screw (6X258017Q)
  • Hinge Type
    Compact
  • Overlay
    1/2"
  • Series
    22855
  • Hinge Cup Bore Depth
    12.5 mm
  • Mount Centers
    45 mm
  • Pivot Type
    Dual
  • Degree of Opening
    105°
  • Adjustment Type
    Cam
  • Hinge Cup Diameter
    35 mm
  • Hinge Dowels
    Without (no dowels)
