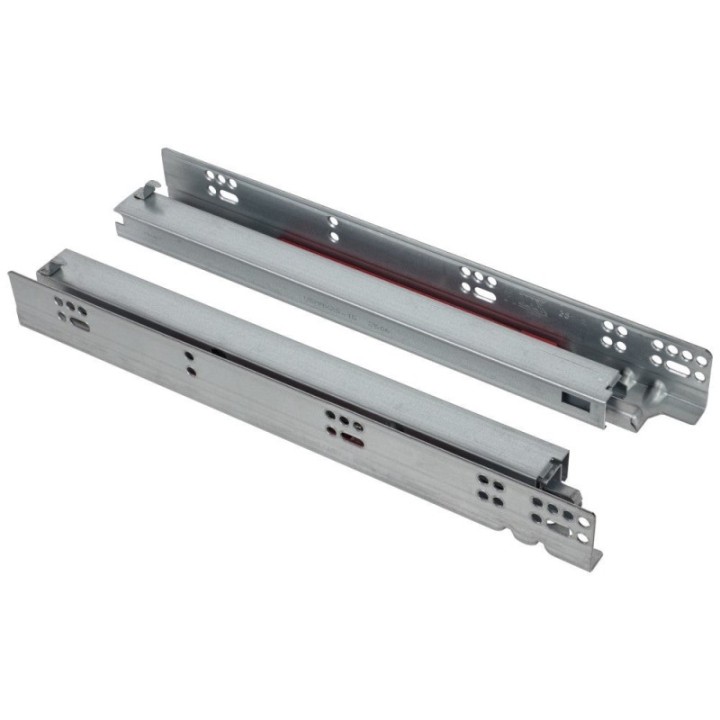

HR MAX™ Synchronized 120 lb Soft-Close EZ Open Full Extension Undermount Slides

The next generation HR MAX™ Synchronized undermount slides use our best-in-class attachment clips that feature superior adjustability, strong slide-clip engagement, and easier installation with an angled attachment point that keeps the clips perfectly aligned. The Synchronized slides exceed ANSI/BHMA standards with 120 lbs. dynamic rating at 50,000 cycles for lasting performance year after year. HR Max undermount slides are engineered for smoother and quieter operation than the previous generation and feature a lower pull force for easier opening. The Synchronized series features a rack-and-pinion system that keeps the slides moving perfectly in synch with no additional stabilizers needed, preventing racking on wide and heavy drawers. HR Max undermount slides are compatible with both face frame and frameless applications and feature a wide range of adjustments for perfect alignment and smooth operation.

When you choose HR Max, you're choosing more than just hardware; you're choosing a brand that cares about your cabinet business. Trust in the brand that's built to last, backed by a lifetime warranty, supported by knowledgeable sales and support staff, and provided by a company that is Built Around You.

• Best-in-class attachment clips available in 6-way metal, 4-way metal, 4-way plastic, and narrow options (sold separately)
• Exceeds ANSI/BHMA standards with 120 lbs. dynamic rating to 50,000 cycles
• Rack and pinion system perfectly aligns the drawer to prevent racking on wide drawers, no additional stabilizer bar needed
• Recommended screw: #7 x 5/8"
• Compatible with 1/2" and 5/8" drawer box material
• Slotted mounting holes provide wide range of fine adjustments
• Screw holes for bottom mounting
• Easy rear bracket installation with our HR-TOOL-RBINST (rear brackets and tool sold separately)
