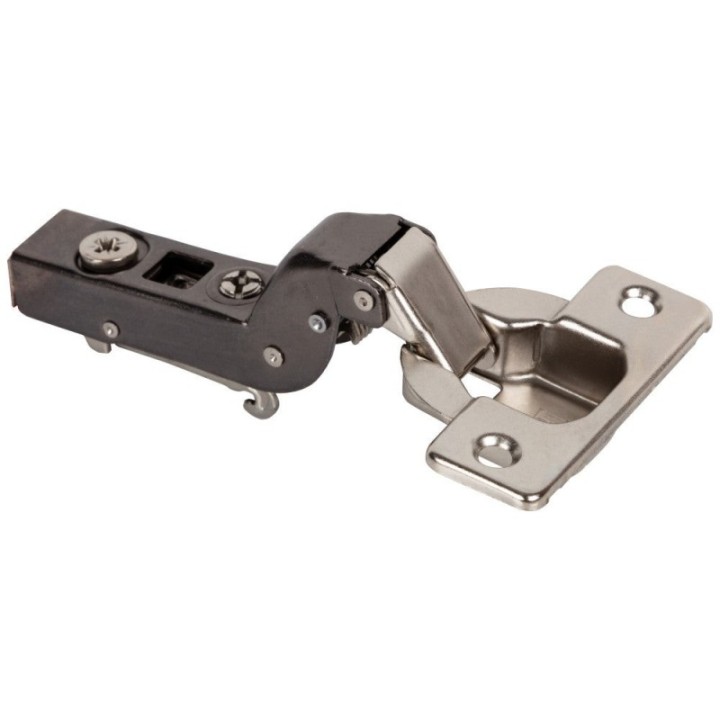

110° Inset Cam Adjustable Commercial Grade Hinge with Press-in 8 mm Dowels
110° Inset Cam Adjustable Commercial Grade Hinge with Press-in 8 mm Dowels

110° Inset Cam Adjustable Commercial Grade Hinge with Press-in 8 mm Dowels

Hardware Resources
$4.00
Patented Heavy Duty hinge designed specifically for rugged commercial use Supports framed or frameless applications 2 stop action Compatible with 600 Series mounting plates
Out-of-Stock
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Patented Heavy Duty hinge designed specifically for rugged commercial useSupports framed or frameless applications2 stop actionCompatible with 600 Series mounting plates
  • Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
  • Lever-top available: Provides toolless installation and removal
  • Patented anti-sag stacked linkage: Reduces door sag & provides minimal side-to-side play

  • ADA Friendly
    No
  • Packaging Type
    Small Package
  • Brand
    Hardware Resources
  • Finish
    Dark Nickel
  • Certification
    ANSI/BHMA A156.9-2003 ANSI/KCMA A161.1-01
  • Installation
    No Dowels
  • Sold By
    Each
  • Material
    Steel
  • Warranty Period
    Limited Lifetime
  • Mount Type
    Screw
  • Closing
    Self-close
  • Cabinet Type
    Faceframe or Frameless
  • Length
    70 mm
  • Hinge Type
    European
  • Overlay
    Inset
  • Series
    900 Series
  • Hinge Cup Bore Depth
    11.2 mm
  • Mount Centers
    45 mm
  • Pivot Type
    Dual
  • Degree of Opening
    110°
  • Adjustment Type
    Cam
  • Hinge Cup Diameter
    35 mm
  • Hinge Dowels
    Without (no dowels)
  • Overlay Adjustment
    +2 mm -2 mm
  • Depth Adjustment
    +3 mm -2 mm
  • Arm Type
    Full Cranked
  • Hinge Crank Amount
    15 mm
  • Cycles
    100 000+
