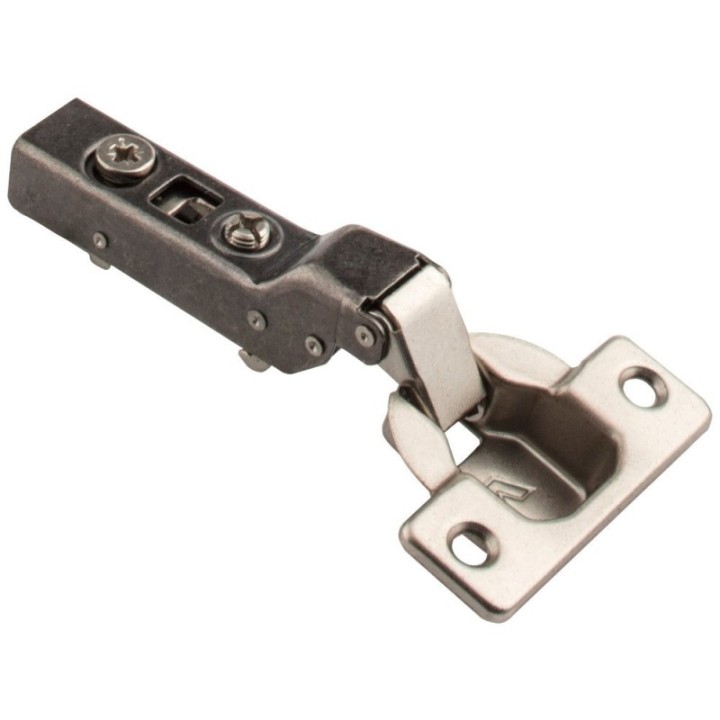

110° Commercial Grade Partial Overlay Cam Adjustable Self-close Hinge without Dowels
110° Commercial Grade Partial Overlay Cam Adjustable Self-close Hinge without Dowels

110° Commercial Grade Partial Overlay Cam Adjustable Self-close Hinge without Dowels

Hardware Resources
$4.00
Patented Heavy Duty hinge designed specifically for rugged commercial use Supports framed or frameless applications Grade 2 ANSI/BHMA certified to 2X ANSI 100,000 cycles 9 mm Crank
Out-of-Stock
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Patented Heavy Duty hinge designed specifically for rugged commercial useSupports framed or frameless applications Grade 2 ANSI/BHMA certified to 2X ANSI 100,000 cycles9 mm Crank
  • Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
  • Lever-top available: Provides toolless installation and removal
  • Patented anti-sag stacked linkage: Reduces door sag & provides minimal side-to-side play
  • 2 stop action
  • Compatible with 600 Series Plates

  • ADA Friendly
    No
  • Packaging Type
    Small Package
  • Brand
    Hardware Resources
  • Finish
    Dark Nickel
  • Certification
    ANSI/BHMA A156.9-2003 ANSI/KCMA A161.1-01
  • Installation
    No Dowels
  • Sold By
    Each
  • Material
    Steel
  • Warranty Period
    Limited Lifetime
  • Mount Type
    Screw
  • Patent
    8 819 897 B2
  • Closing
    Self-close
  • Cabinet Type
    Faceframe or Frameless
  • Length
    68 mm
  • Hinge Type
    European
  • Overlay
    Half Overlay
  • Series
    900 Series
  • Hinge Cup Bore Depth
    11.2 mm
  • Mount Centers
    45 mm
  • Pivot Type
    Dual
  • Degree of Opening
    110°
  • Adjustment Type
    Cam
  • Hinge Cup Diameter
    35 mm
  • Hinge Dowels
    Without (no dowels)
  • Overlay Adjustment
    +2 mm -2 mm
  • Depth Adjustment
    +3 mm -2 mm
  • Arm Type
    Half Cranked
  • Hinge Crank Amount
    9 mm
  • Cycles
    100 000+
