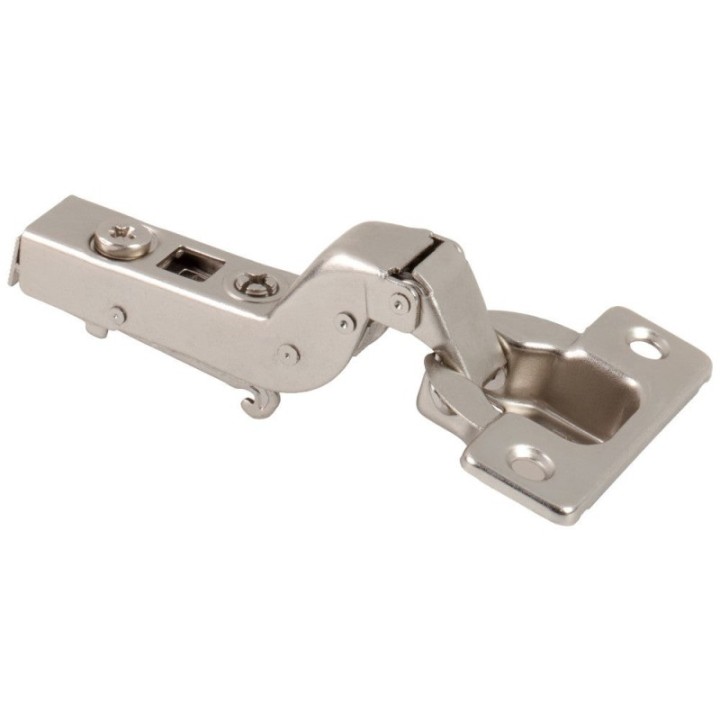

HR MAX™ 110° Heavy Duty Inset Cam Adjustable Self-close Hinge without Dowels
HR MAX™ 110° Heavy Duty Inset Cam Adjustable Self-close Hinge without Dowels

HR MAX™ 110° Heavy Duty Inset Cam Adjustable Self-close Hinge without Dowels

HR Max
$3.00
HR Max = Quality backed by Lifetime warranty Heavy duty spring and patented linkage system All metal concealed damper provides a life time of worry-free use 2-stop action Woodwork Institute Listed Product Hinge and plate provide 6-way adjustability Cold rolled steel with nickel plating Compatible with 600 series mounting plates 15 mm Crank
Out-of-Stock
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

HR Max = Quality backed by Lifetime warranty Heavy duty spring and patented linkage systemAll metal concealed damper provides a life time of worry-free use2-stop actionWoodwork Institute Listed ProductHinge and plate provide 6-way adjustabilityCold rolled steel with nickel platingCompatible with 600 series mounting plates15 mm Crank
  • Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
  • Patented anti-sag stacked linkage: Reduces door sag & provides minimal side-to-side play
  • 2-stop action

  • Brand
    HR Max
  • Reference
    725.0537.25
  • UPC
    840002531993

  • ADA Friendly
    No
  • Packaging Type
    Small Package
  • Brand
    HR Max
  • Finish
    Polished Nickel
  • Certification
    ANSI/BHMA A156.9-2010 ANSI/KCMA A161.1-2012 Woodwork Institute
  • Installation
    No Dowels
  • Sold By
    Each
  • Material
    Steel
  • Warranty Period
    Limited Lifetime
  • Mount Type
    Screw
  • Patent
    8 819 897 B2
  • Closing
    Self-close
  • Cabinet Type
    Faceframe or Frameless
  • Length
    68 mm
  • Hinge Type
    European
  • Series
    725 Series
  • Hinge Cup Bore Depth
    11.2 mm
  • Mount Centers
    45 mm
  • Pivot Type
    Dual
  • Inset
    Full
  • Degree of Opening
    110°
  • Adjustment Type
    Cam
  • Hinge Cup Diameter
    35 mm
  • Hinge Dowels
    Without (no dowels)
  • Overlay Adjustment
    +2 mm -2 mm
  • Depth Adjustment
    +3 mm -2 mm
  • Arm Type
    Full Cranked
  • Hinge Crank Amount
    15 mm
  • Cycles
    50 000+
