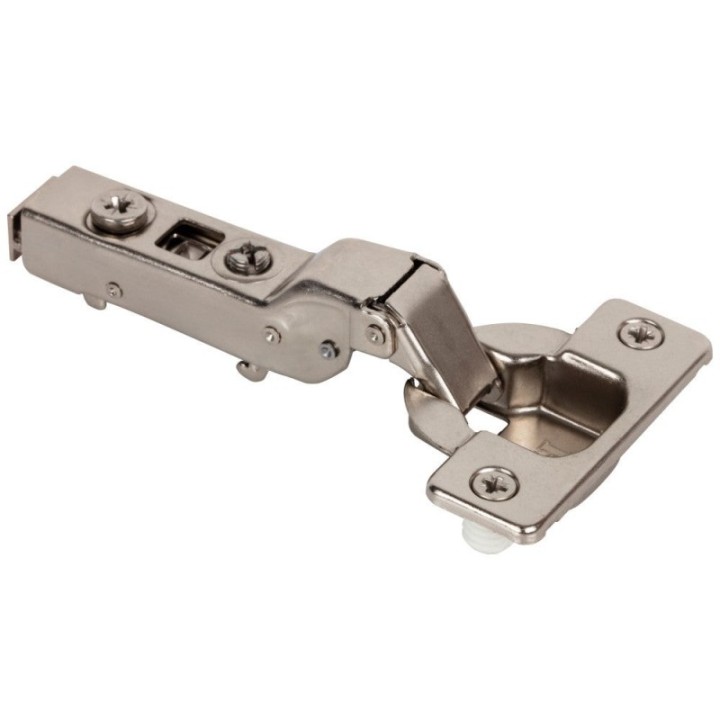

HR MAX™ 110° Heavy Duty Partial Overlay Cam Adjustable Self-close Hing without Dowels
HR MAX™ 110° Heavy Duty Partial Overlay Cam Adjustable Self-close Hing without Dowels

HR MAX™ 110° Heavy Duty Partial Overlay Cam Adjustable Self-close Hing without Dowels

HR Max
$3.00
HR Max = Quality backed by Lifetime warranty Heavy duty spring and patented linkage system Self Close, 2-stop action Woodwork Institute Listed Product Hinge and plate provide 6-way adjustability Grade 2 ANSI/BHMA certified to ANSI 50,000 cycles 9 mm Crank
Out-of-Stock
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

HR Max = Quality backed by Lifetime warranty Heavy duty spring and patented linkage systemSelf Close, 2-stop actionWoodwork Institute Listed ProductHinge and plate provide 6-way adjustabilityGrade 2 ANSI/BHMA certified to ANSI 50,000 cycles9 mm Crank
  • Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
  • Patented anti-sag stacked linkage: Reduces door sag & provides minimal side-to-side play
  • 6-Way adjustability: Horizontal, depth and vertical with plate

  • Brand
    HR Max
  • Reference
    725.0536.25
  • UPC
    840002531986

  • ADA Friendly
    No
  • Packaging Type
    Small Package
  • Brand
    HR Max
  • Finish
    Polished Nickel
  • Certification
    ANSI/BHMA A156.9-2010 ANSI/KCMA A161.1-2012 Woodwork Institute
  • Installation
    No Dowels
  • Sold By
    Each
  • Material
    Steel
  • Warranty Period
    Limited Lifetime
  • Mount Type
    Screw
  • Patent
    8 819 897 B2
  • Closing
    Self-close
  • Cabinet Type
    Faceframe or Frameless
  • Length
    68 mm
  • Hinge Type
    European
  • Overlay
    Half Overlay
  • Series
    725 Series
  • Hinge Cup Bore Depth
    11.2 mm
  • Mount Centers
    45 mm
  • Pivot Type
    Dual
  • Degree of Opening
    110°
  • Adjustment Type
    Cam
  • Hinge Cup Diameter
    35 mm
  • Hinge Dowels
    Without (no dowels)
  • Overlay Adjustment
    +2 mm -2 mm
  • Depth Adjustment
    +3 mm -2 mm
  • Arm Type
    Half Cranked
  • Hinge Crank Amount
    9 mm
  • Cycles
    50 000+
