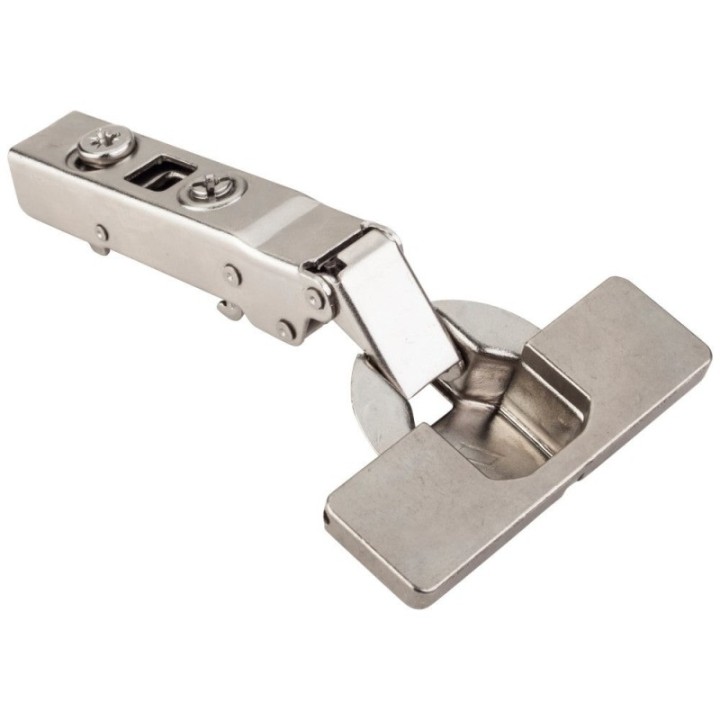

HR MAX™ 125° Heavy Duty Full Overlay Cam Adjustable Soft-close Hinge with Lever-Top Dowels
HR MAX™ 125° Heavy Duty Full Overlay Cam Adjustable Soft-close Hinge with Lever-Top Dowels

HR MAX™ 125° Heavy Duty Full Overlay Cam Adjustable Soft-close Hinge with Lever-Top Dowels

HR Max
$8.00
HR Max = Quality backed by Lifetime warranty Heavy duty spring and patented linkage system All metal concealed damper provides a life time of worry-free use 2-stop action 0 mm Crank
Out-of-Stock
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

HR Max = Quality backed by Lifetime warranty Heavy duty spring and patented linkage systemAll metal concealed damper provides a life time of worry-free use2-stop action0 mm Crank
  • Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
  • Lever-top available: Provides toolless installation and removal
  • Patented anti-sag stacked linkage: Reduces door sag & provides minimal side-to-side play
  • 45 mm boring pattern
  • Compatible with 600 Series Plates

  • Brand
    HR Max
  • Reference
    700.0U94.05
  • UPC
    840002531900

  • ADA Friendly
    No
  • Packaging Type
    Small Package
  • Brand
    HR Max
  • Finish
    Polished Nickel
  • Certification
    ANSI/KCMA A161.1-2012
  • Installation
    Lever-Top Dowels
  • Sold By
    Each
  • Material
    Steel
  • Warranty Period
    Limited Lifetime
  • Mount Type
    Lever-Top Dowels
  • Patent
    8 819 897 B2
  • Closing
    Soft-close
  • Cabinet Type
    Faceframe or Frameless
  • Length
    68 mm
  • Hinge Type
    European
  • Overlay
    Full Overlay
  • Series
    700 Series
  • Hinge Cup Bore Depth
    11.2 mm
  • Mount Centers
    45 mm
  • Pivot Type
    Dual
  • Degree of Opening
    125°
  • Adjustment Type
    Cam
  • Hinge Cup Diameter
    35 mm
  • Hinge Dowels
    Lever-Top
  • Overlay Adjustment
    +2 mm -2 mm
  • Depth Adjustment
    +3 mm -2 mm
  • Arm Type
    Straight Arm
  • Hinge Crank Amount
    0 mm
  • Cycles
    50 000+
