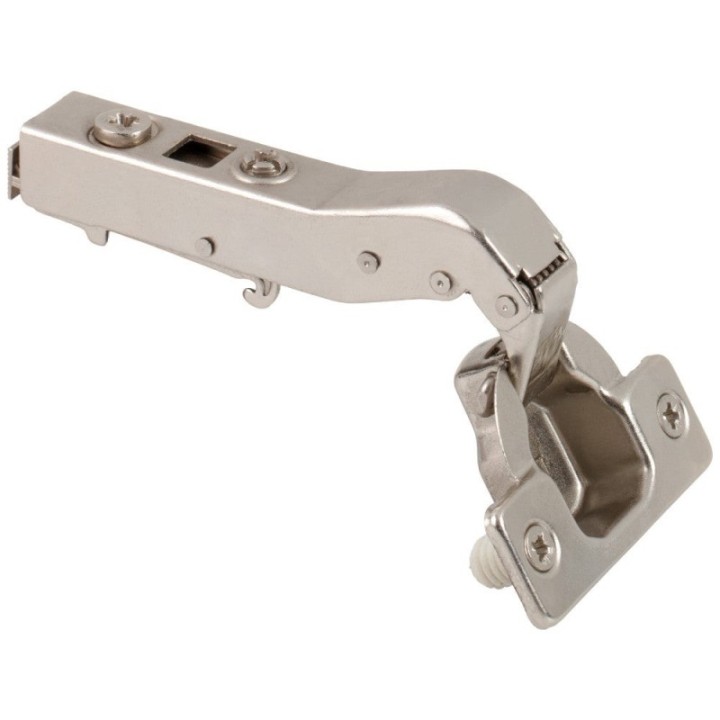

HR MAX™ 45° Heavy Duty Corner Overlay Cam Adjustable Soft-close Hinge with Press-in 8 mm Dowels
HR MAX™ 45° Heavy Duty Corner Overlay Cam Adjustable Soft-close Hinge with Press-in 8 mm Dowels

HR MAX™ 45° Heavy Duty Corner Overlay Cam Adjustable Soft-close Hinge with Press-in 8 mm Dowels

HR Max
$10.00
HR Max = Quality backed by Lifetime warranty Heavy duty spring and patented linkage system All metal concealed damper provides a life time of worry-free use 2-stop action Hinge and plate provide 6-way adjustability Compatible with 600 series mounting plates
Out-of-Stock
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

HR Max = Quality backed by Lifetime warranty Heavy duty spring and patented linkage systemAll metal concealed damper provides a life time of worry-free use2-stop actionHinge and plate provide 6-way adjustabilityCompatible with 600 series mounting plates
  • Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
  • Lever-top available: Provides toolless installation and removal
  • Patented anti-sag stacked linkage: Reduces door sag & provides minimal side-to-side play

  • Brand
    HR Max
  • Reference
    700.0N20.05
  • UPC
    843512062667

  • ADA Friendly
    No
  • Packaging Type
    Small Package
  • Brand
    HR Max
  • Finish
    Polished Nickel
  • Certification
    ANSI/KCMA A161.1-2012
  • Installation
    Press-in 8 mm Dowels
  • Sold By
    Each
  • Material
    Steel
  • Warranty Period
    Limited Lifetime
  • Mount Type
    Press-in
  • Closing
    Soft-close
  • Cabinet Type
    Faceframe or Frameless
  • Length
    67 mm
  • Hinge Type
    European
  • Overlay
    Inside Corner
  • Series
    700 Series
  • Hinge Cup Bore Depth
    11.2 mm
  • Mount Centers
    45 mm
  • Pivot Type
    Dual
  • Inset
    3/8"
  • Degree of Opening
    105°
  • Adjustment Type
    Cam
  • Hinge Cup Diameter
    35 mm
  • Hinge Dowels
    Press-in
  • Overlay Adjustment
    +2 mm -2 mm
  • Depth Adjustment
    +3 mm -2 mm
  • Arm Type
    Full Cranked
  • Hinge Crank Amount
    18 mm
  • Cycles
    50 000+
