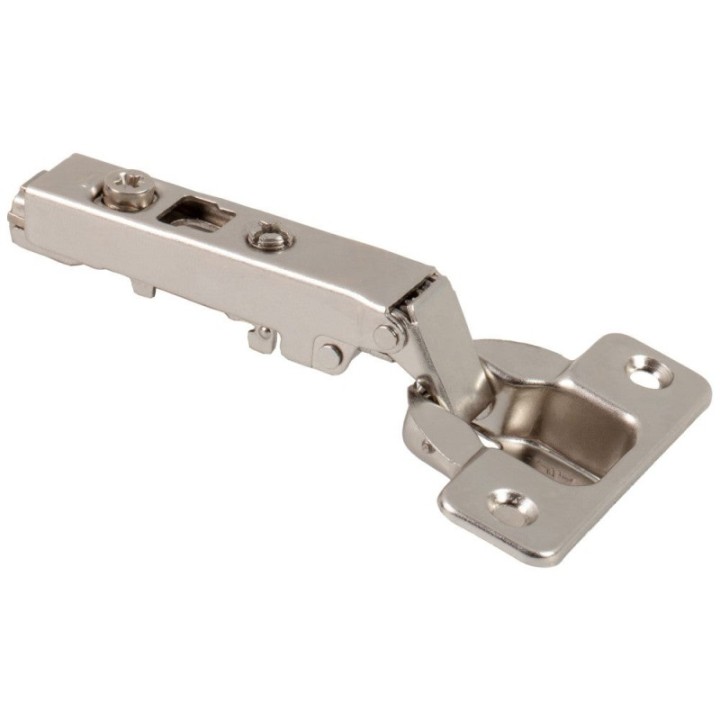

HR MAX™ 110° Standard Duty Full Overlay Cam Adjustable Self-close Hinge without Dowels
HR MAX™ 110° Standard Duty Full Overlay Cam Adjustable Self-close Hinge without Dowels

HR MAX™ 110° Standard Duty Full Overlay Cam Adjustable Self-close Hinge without Dowels

HR Max
$2.00
HR Max = Quality backed by Lifetime warranty Standard Duty European Hinge with the performance you need and competitive price point Hinge and plate provide 6-way adjustability Lever-top available: Provides toolless installation and removal Compatible with 400 series mounting plates 0 mm Crank
Out-of-Stock
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

HR Max = Quality backed by Lifetime warranty Standard Duty European Hinge with the performance you need and competitive price pointHinge and plate provide 6-way adjustabilityLever-top available: Provides toolless installation and removalCompatible with 400 series mounting plates0 mm Crank
  • Lever-top available: Provides toolless installation and removal
  • 6-Way adjustability: Horizontal, depth and vertical with plate
  • Compatible with 400 Series plates

  • Brand
    HR Max
  • Reference
    500.0535.75
  • UPC
    840002530989

  • ADA Friendly
    No
  • Packaging Type
    Small Package
  • Brand
    HR Max
  • Finish
    Polished Nickel
  • Certification
    ANSI/BHMA A156.9-2010 ANSI/KCMA A161.1-2012
  • Installation
    No Dowels
  • Sold By
    Each
  • Material
    Steel
  • Warranty Period
    Limited Lifetime
  • Mount Type
    Screw
  • Height
    15.7 mm
  • Closing
    Self-close
  • Cabinet Type
    Faceframe or Frameless
  • Length
    67 mm
  • Hinge Type
    European
  • Overlay
    Full Overlay
  • Series
    500 Series
  • Hinge Cup Bore Depth
    11.2 mm
  • Mount Centers
    45 mm
  • Pivot Type
    Dual
  • Degree of Opening
    110°
  • Adjustment Type
    Cam
  • Hinge Cup Diameter
    35 mm
  • Hinge Dowels
    Without (no dowels)
  • Overlay Adjustment
    +2 mm -2 mm
  • Depth Adjustment
    +3 mm -2 mm
  • Arm Type
    Straight Arm
  • Hinge Crank Amount
    0 mm
