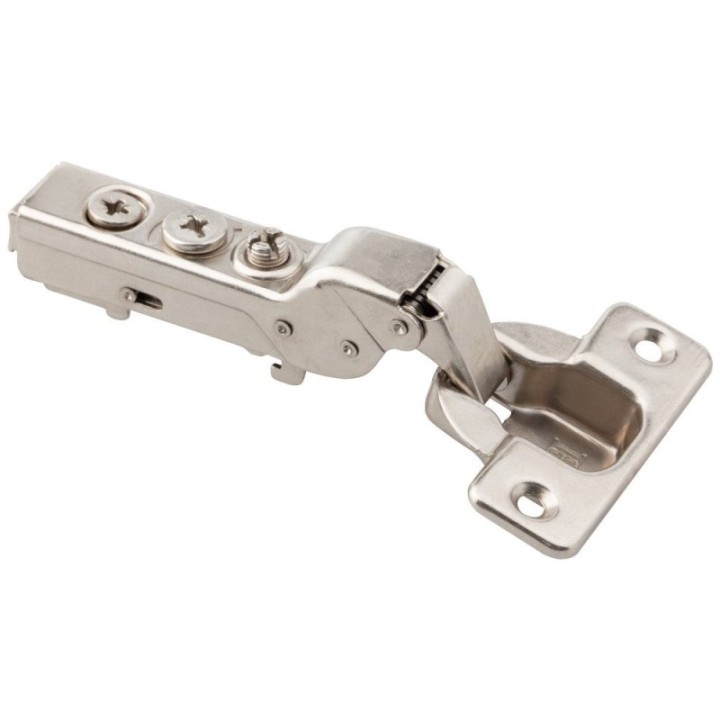

HR MAX™ 110° 9 mm Crank Cam Adjustable Heavy Duty Adjustable Soft-close Hinge without Dowels
HR MAX™ 110° 9 mm Crank Cam Adjustable Heavy Duty Adjustable Soft-close Hinge without Dowels

HR MAX™ 110° 9 mm Crank Cam Adjustable Heavy Duty Adjustable Soft-close Hinge without Dowels

HR Max
$6.00
HR Max = Quality backed by Lifetime warranty Patented integrated soft-close European hinge with the ability to fine tune closing speed based on the size and weight of the door Heavy duty spring and linkage system Grade 2 ANSI/BHMA certified to ANSI 100,000 cycles 9 mm Crank
Out-of-Stock
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

HR Max = Quality backed by Lifetime warranty Patented integrated soft-close European hinge with the ability to fine tune closing speed based on the size and weight of the door Heavy duty spring and linkage system Grade 2 ANSI/BHMA certified to ANSI 100,000 cycles 9 mm Crank
  • Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
  • Hinge and plate provide 6-way adjustability
  • Cold rolled steel with nickel plating
  • Compatible with 600 Series Plates

  • Brand
    HR Max
  • Reference
    1750.0536.25
  • UPC
    840002552882

  • ADA Friendly
    No
  • Packaging Type
    Small Package
  • Brand
    HR Max
  • Finish
    Polished Nickel
  • Certification
    ANSI/BHMA A156.9-2015 ANSI/KCMA A161.1-2012
  • Installation
    No Dowels
  • Sold By
    Each
  • Material
    Steel
  • Warranty Period
    Limited Lifetime
  • Mount Type
    Screw
  • Patent
    US 9 169 681 B2 US 9 617 773 B2 US 10 081 975 B2
  • Closing
    Soft-close
  • Cabinet Type
    Faceframe or Frameless
  • Length
    118 mm
  • Hinge Type
    European
  • Overlay
    Half Overlay
  • Series
    1750 Series
  • Hinge Cup Bore Depth
    11.2 mm
  • Mount Centers
    45 mm
  • Pivot Type
    Dual
  • Degree of Opening
    110°
  • Adjustment Type
    Cam
  • Hinge Cup Diameter
    35 mm
  • Hinge Dowels
    Without (no dowels)
  • Overlay Adjustment
    +2 mm -2 mm
  • Depth Adjustment
    +3 mm -2 mm
  • Arm Type
    Half Cranked
  • Hinge Crank Amount
    9 mm
  • Cycles
    100 000+
