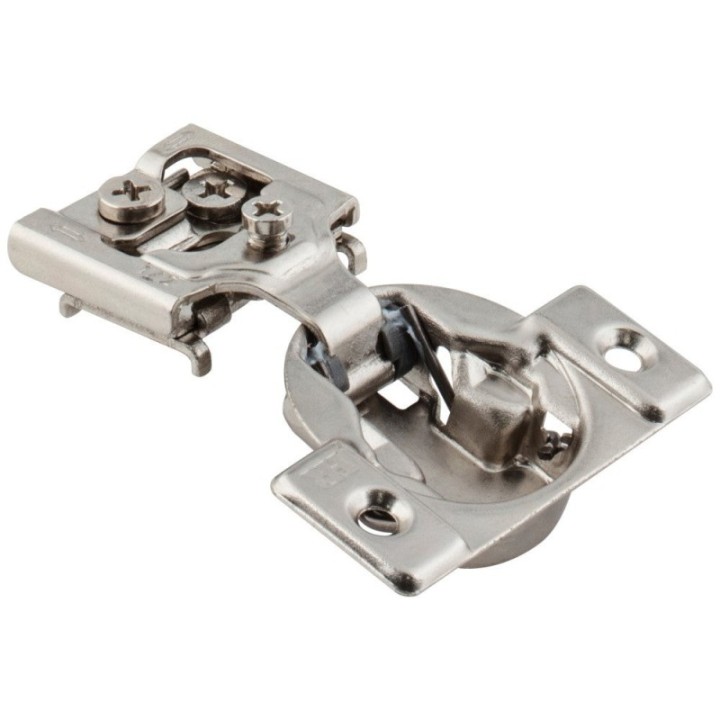

HR MAX™ 105° 1/2" Overlay Self-close Compact Hinge without Dowels
HR MAX™ 105° 1/2" Overlay Self-close Compact Hinge without Dowels

HR MAX™ 105° 1/2" Overlay Self-close Compact Hinge without Dowels

HR Max
$3.00
HR Max = Quality backed by Lifetime warranty Streamlined glide channels reduce friction and wear Use in conjuction with 9390 Series hinges on lighter doors Grade 2 ANSI/BHMA certified to 50,000 cycles and 6-way adjustability
Out-of-Stock
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

HR Max = Quality backed by Lifetime warranty Streamlined glide channels reduce friction and wearUse in conjuction with 9390 Series hinges on lighter doorsGrade 2 ANSI/BHMA certified to 50,000 cycles and 6-way adjustability
  • Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
  • One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment
  • For face frame applications
  • #7 x 5/8" pan washer head screw recommended for installation (item # 7X0580WCQ)

  • Brand
    HR Max
  • Reference
    8390
  • UPC
    840002559812

  • ADA Friendly
    No
  • Packaging Type
    Small Package
  • Brand
    HR Max
  • Finish
    Nickel
  • Certification
    ANSI/BHMA A156.9-2010 ANSI/KCMA A161.1-2012
  • Installation
    Screw
  • Sold By
    Each
  • Material
    Steel
  • Warranty Period
    Limited Lifetime
  • Mount Type
    Screw
  • Closing
    Self-close
  • Cabinet Type
    Faceframe
  • Hinge Type
    Compact
  • Overlay
    1/2"
  • Series
    8390 Series
  • Hinge Cup Bore Depth
    11.2 mm
  • Mount Centers
    45 mm
  • Pivot Type
    Single
  • Degree of Opening
    105°
  • Adjustment Type
    Cam
  • Hinge Cup Diameter
    35 mm
  • Hinge Dowels
    Without (no dowels)
  • Overlay Adjustment
    +2 mm -2 mm
