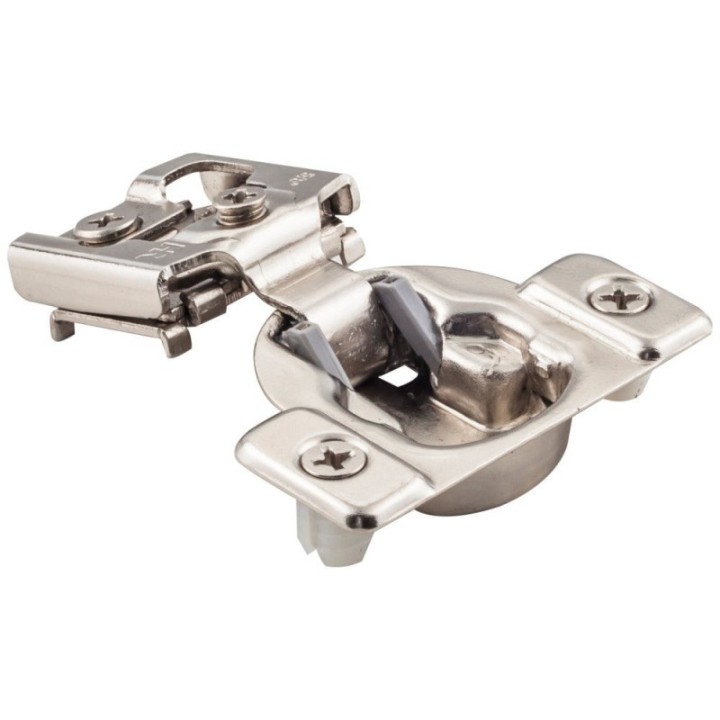

105° 5/8" Overlay DURA-CLOSE® Self-close Compact Hinge with Press-in 8 mm Dowels
105° 5/8" Overlay DURA-CLOSE® Self-close Compact Hinge with Press-in 8 mm Dowels

105° 5/8" Overlay DURA-CLOSE® Self-close Compact Hinge with Press-in 8 mm Dowels

Hardware Resources
$3.00
Patent pending spring sleeves reduce friction and wear One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment For face frame applications Single pivot point 6-way adjustability Compatible with 7390 Series self-close hinges
Out-of-Stock
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Patent pending spring sleeves reduce friction and wearOne piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustmentFor face frame applicationsSingle pivot point6-way adjustabilityCompatible with 7390 Series self-close hinges
  • Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
  • Cold rolled steel with nickel plating
  • 45 mm boring pattern

  • ADA Friendly
    No
  • Packaging Type
    Small Package
  • Brand
    Hardware Resources
  • Finish
    Polished Nickel
  • Certification
    ANSI/BHMA A156.9-2010 ANSI/KCMA A161.1-2012
  • Installation
    Screw
  • Sold By
    Each
  • Material
    Steel
  • Warranty Period
    Limited Lifetime
  • Mount Type
    Press-in
  • Patent
    10 030 427
  • Closing
    Self-close
  • Cabinet Type
    Faceframe
  • Recommended Screws
    #7 x 5/8” pan washer head screw (7X0580WCQ)
  • Hinge Type
    Compact
  • Overlay
    5/8"
  • Series
    6390 Series
  • Hinge Cup Bore Depth
    11.2 mm
  • Mount Centers
    45 mm
  • Pivot Type
    Single
  • Degree of Opening
    105°
  • Adjustment Type
    Cam
  • Hinge Cup Diameter
    35 mm
  • Hinge Dowels
    Press-in
  • Overlay Adjustment
    +2 mm -2 mm
