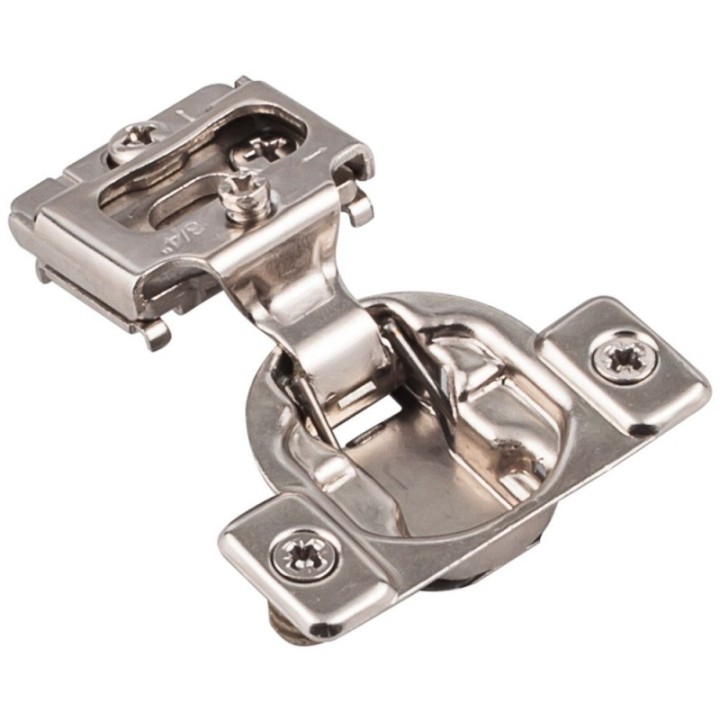

105° 3/4" Overlay Standard Duty Self-close Compact Hinge with Dowels
105° 3/4" Overlay Standard Duty Self-close Compact Hinge with Dowels

105° 3/4" Overlay Standard Duty Self-close Compact Hinge with Dowels

Hardware Resources
$2.00
Designed spring and arm for better support Grade 2 ANSI/BHMA certified to ANSI 50,000 cycles One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment
Out-of-Stock
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Designed spring and arm for better supportGrade 2 ANSI/BHMA certified to ANSI 50,000 cyclesOne piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment
  • Single pivot point
  • 6-way adjustability
  • Cold rolled steel with nickel plating
  • #7 x 5/8" pan washer head screw (7X0580WCQ) recommended

  • ADA Friendly
    No
  • Packaging Type
    Small Package
  • Brand
    Hardware Resources
  • Finish
    Polished Nickel
  • Certification
    Grade 2 ANSI/BHMA Certified to ANSI 50 000 Cycles
  • Installation
    Screw Expanding Dowel
  • Sold By
    Each
  • Material
    Steel
  • Warranty Period
    Limited Lifetime
  • Mount Type
    Press-in
  • Closing
    Self-close
  • Recommended Screws
    #7 x 5/8" pan washer head screw (7X0580WCQ)
  • Hinge Type
    Compact
  • Overlay
    3/4"
  • Series
    4390 Series
  • Hinge Cup Bore Depth
    10.3 mm
  • Mount Centers
    45 mm
  • Pivot Type
    Single
  • Degree of Opening
    105°
  • Adjustment Type
    Cam
  • Hinge Cup Diameter
    35 mm
  • Hinge Dowels
    Press-in
  • Overlay Adjustment
    +2 mm -2 mm
  • Cycles
    50 000+
