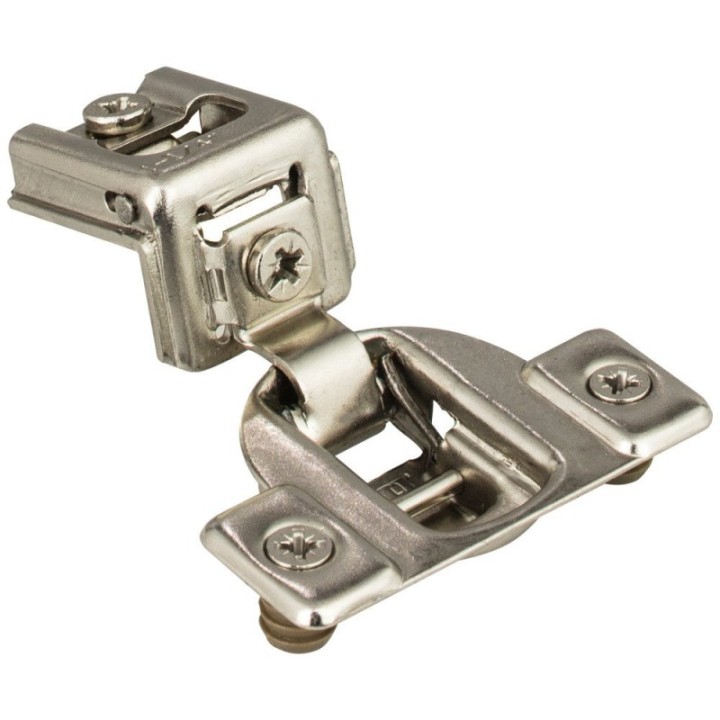

HR MAX™ 105° 1-1/4" Overlay Standard Duty Self-Close Compact Hinge with 2 Cleats and 8 mm Dowels
HR MAX™ 105° 1-1/4" Overlay Standard Duty Self-Close Compact Hinge with 2 Cleats and 8 mm Dowels

HR MAX™ 105° 1-1/4" Overlay Standard Duty Self-Close Compact Hinge with 2 Cleats and 8 mm Dowels

HR Max
$3.00
HR Max = Quality backed by Lifetime warranty 105° 1-1/4" Overlay standard duty self-close compact hinge with 2 cleats and 8 mm dowels
Out-of-Stock
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

HR Max = Quality backed by Lifetime warranty 105° 1-1/4" Overlay standard duty self-close compact hinge with 2 cleats and 8 mm dowels

  • Brand
    HR Max
  • Reference
    3394-2C
  • UPC
    840002532662

  • ADA Friendly
    No
  • Packaging Type
    Small Package
  • Brand
    HR Max
  • Finish
    Polished Nickel
  • Certification
    ANSI/BHMA A156.9-2010 ANSI/KCMA A161.1-2012
  • Sold By
    Each
  • Material
    Steel
  • Warranty Period
    Limited Lifetime
  • Mount Type
    Press-in
  • Patent
    7653967
  • Closing
    Self-close
  • Recommended Screws
    #7 x 5/8" pan washer head screw (7X0580WCQ) recommended
  • Hinge Type
    Compact
  • Overlay
    1-1/4"
  • Series
    3390 Series
  • Hinge Cup Bore Depth
    12.5 mm
  • Mount Centers
    45 mm
  • Pivot Type
    Single
  • Degree of Opening
    105°
  • Adjustment Type
    Cam
  • Hinge Cup Diameter
    35 mm
  • Hinge Dowels
    Press-in
  • Overlay Adjustment
    +2 mm -2 mm
