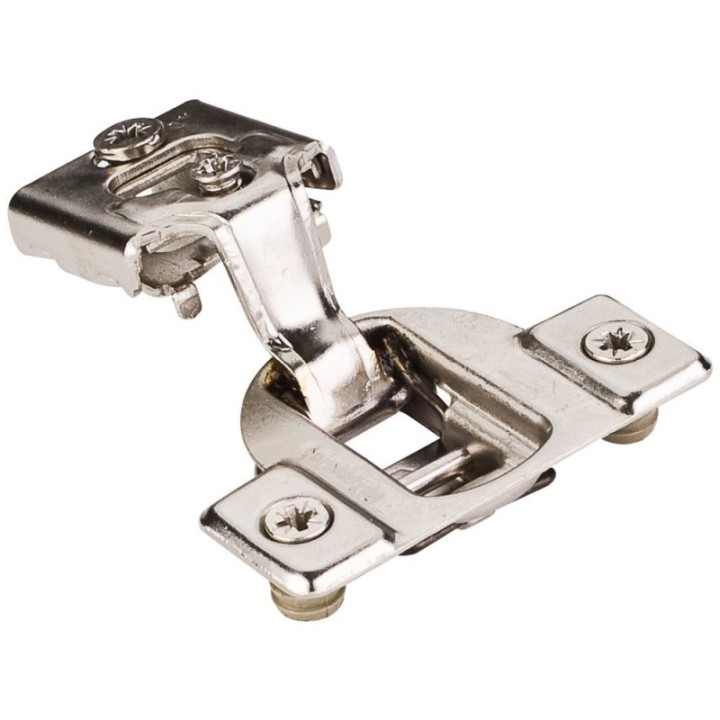

HR MAX™ 105° 1" Economical Standard Duty Self-close Compact Hinge with 8 mm Dowels
HR MAX™ 105° 1" Economical Standard Duty Self-close Compact Hinge with 8 mm Dowels

HR MAX™ 105° 1" Economical Standard Duty Self-close Compact Hinge with 8 mm Dowels

HR Max
$2.00
HR Max = Quality backed by Lifetime warranty Market proven economical standard duty compact hinge One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment 6-way adjustability Grade 2 ANSI/BHMA certified to ANSI 50,000 cycles
Out-of-Stock
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

HR Max = Quality backed by Lifetime warranty Market proven economical standard duty compact hingeOne piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment6-way adjustabilityGrade 2 ANSI/BHMA certified to ANSI 50,000 cycles
  • For face frame applications
  • Single pivot point
  • 45 mm boring pattern

  • Brand
    HR Max
  • Reference
    3391-000
  • UPC
    840002530453

  • ADA Friendly
    No
  • Packaging Type
    Small Package
  • Brand
    HR Max
  • Finish
    Polished Nickel
  • Certification
    ANSI/BHMA A156.9-2010 ANSI/KCMA A161.1-2012
  • Installation
    Screw Expanding Dowel
  • Sold By
    Each
  • Material
    Steel
  • Warranty Period
    Limited Lifetime
  • Mount Type
    Press-in
  • Closing
    Self-close
  • Recommended Screws
    #7 x 5/8" pan washer head screw (7X0580WCQ)
  • Hinge Type
    Compact
  • Overlay
    1"
  • Series
    3390 Series
  • Hinge Cup Bore Depth
    12.5 mm
  • Mount Centers
    45 mm
  • Pivot Type
    Single
  • Degree of Opening
    105°
  • Adjustment Type
    Cam
  • Hinge Cup Diameter
    35 mm
  • Hinge Dowels
    Press-in
  • Overlay Adjustment
    +2 mm -2 mm
